100W FCZ Series LED High Bay Lamp (130Lm/W, Meanwell-HBG, SMD)

Item No.: GHB-FC10018
IP65 , 5-Year Warranties , Certificate: CE , RoHs
Model: GHB-FC10018
Luminous Flux: 13000lm , Luminous Eff.: 130lm/W
Driver: Mean Well-HBG , LED: 3030 SMD
Heat Sink: Updated Heat-Pipe Heat Sink
Beam Angle: 45/90/120°
Certification: CE,RoHS

Working Temperature: -30°C~+50°C Power: 100W Voltage: 110v~220V Voltage Luminous Flux:13000LM Luminous Efficiency: 130LM/W
CCT: 5500K CRI: Ra>80 LED: Philip-s 3030 SMD180 pcs Driver Mean Well: HBG-100-60A Output Voltage: 60V
Output Current: 1.73A Standard IP21 Customized IP65 Beam Angle 45/90/120° LED Life Span Luminous Decay <30% in 50000 hours Driver Life Span 5 Year

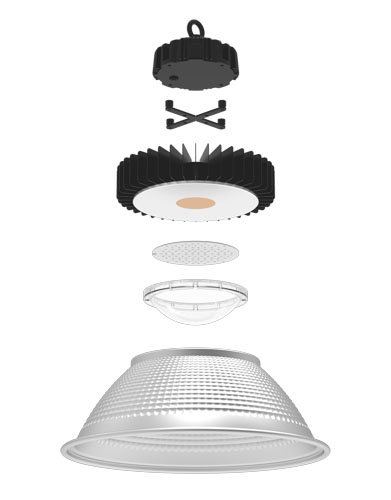

Mean Well

Driver Connector

Aluminum,Steel, Black Nano-coating appearance, Anti-corrosion

Heat Sink

Hengjie Phase-change Heat Sink with Copper Heat column (Updated heat pipe)




PC Cover to protect LED,


Aluminum, High Reflectance Rate, 45/90/120 deg

Optimal Protector of LED: Phase-change Heat Sink with Heat Column (Updated Heat pipe)
Heat-transfer Core Of Heat Sink: Heat Column High Thermal Conductivity: Far more than any material Low Temperature Starting Working: Less than 28°C China Invention Patent: No.ZL 2010 1 0162168.4 Chimney Convection: Enhance Cooling
Comparison between Heat-column Heat Sink and Normal Heat sink Different Cooling Effort depends on different principle. More protection for central LED chip

More options in different optical beam, material and appearance process.

Material:AluminumAppearance:Sand Blasting Material:AluminumAppearance:Nano Coating Material:PCAppearance:Semi-transparent

IES Curve
