100W MF Series LED Low Bay Lamp

Item No.: GHB-MF10020
IP65 , 2-Year Warranties , Certificate: CE , RoHs
Model: GHB-MF10020
Luminous Flux: 10402lm , Luminous Eff.: 111.9lm/W
Driver: 100W , LED: 100W SMD
Heat Sink:
Beam Angle: 60/90/120°
Certification: CE,RoHS
Description Specification


Working Temperature: -30°C~+50°C Power: 60W Voltage: 110v~220V Voltage Luminous Flux:10402LM Luminous Efficiency: 111.9LM/W
CCT: 5500K CRI: Ra>80 LED: 100w SMD Driver: 100W Output Voltage: 40V
Output Current: 2.5A Standard IP21 Customized IP65 Beam Angle 45/90/120° LED Life Span Luminous Decay <30% in 50000 hours Driver Life Span 5 Year

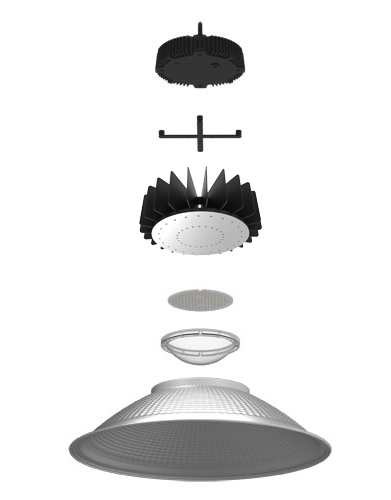

Driver

Mean Well

Driver Connector

Aluminum,Steel, Black Nano-coating appearance, Anti-corrosion

Heat Sink

Hengjie Phase-change Heat Sink with Copper Heat column (Updated heat pipe)

LED

Philip-s

Lens

PC Cover to protect LED,

Reflector

Aluminum, High Reflectance Rate, 45/90/120 deg






Reflector
More options in different optical beam, material and appearance process.



Material:AluminumAppearance:Sand Blasting Material:AluminumAppearance:Nano Coating Material:PCAppearance:Semi-transparent


IES Curve



Thermal Curve(Tc Point Temperature)
Test result LED Power ( w) Ta Tc △T Heat Resistance Angle of LED
Tc1 100 25.0 57.3 32.3 0.3230 -90° ( Down)
Tc2 100 25.0 54.8 29.8 0.2980 -90° ( Down)


Packaging
